StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART Item # 949047

 |
StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
$ 36 .29 / each $36.29
Add a Protection Plan (optional)  Learn More
Includes Coverage For Accidental Drops & Spills
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

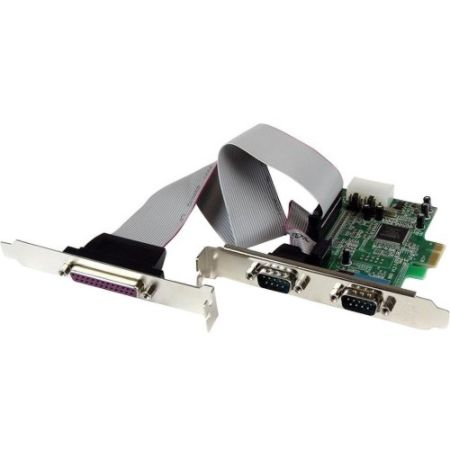

    The PEX2S5531P 2S1P PCI Express card turns a PCI Express slot into two RS232 (DB9) serial ports and one parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.Compatible with a broad range of operating systems including Windows 2000/XP/2003/Vista/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 port serial 1 port parallel PCI-Express card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.This product is a replacement for the PEX2S5521P card.

    Back To Top

    Product Details

    Item # 949047
    OfficeMax # 23568319
    Manufacturer # 2767438
    maximum data transfer rate 12 Mbit/s Parallel Port; 3.60 Mbit/s Serial Port
    height 0.8 in
    Additional Information Native single-chip, single lane PCI Express chipset delivers true PCIe performance.; Standard and low profile/half-height bracket included to ensure fitment in any system.; Easy to install and use with full step-by-step instructions saving time and hassle.; Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS; Windows Server® 2012, 2008 R2, 2003; Mac OS® 10.4 - 10.6; Linux
    quantity 1
    Number of Parallel Ports (External) 2
    width 4.7 in
    package contents 2S1P PCIe Parallel Serial Combo Card; Standard and Low Profile/half-height Bracket
    depth 4.1 in
    Product Name 2S1P PCIe Parallel Serial Combo Card
    manufacturer StarTech.com
    Host Interface PCI Express
    weight 4.90 oz
    brand name StarTech
    Card Height Dual-profile
    length 4.1in.
    UART Type 16550
    Number of Serial Ports (External) 1
    Platform Supported PC
    form factor Plug-in Card
    warranty length 2-year limited
    model name PEX2S5531P
